Lube Oils Packaging Line With Filling Capping Sealing Labeling Machines Auto1L-5L Plastic Jerry Tin Can Engine Oil Machine

+
  • photobank (36).jpg
  • photobank (37).jpg

Suitable for fill: Lubricant Oil / Car Oil / Motor Oil / coolant liquid / engine oil / Lubricanting Oil kinds Products

Suitable for fill: Lubricant Oil / Car Oil / Motor Oil / coolant liquid / engine oil / Lubricanting Oil kinds Products

Product Description

Lube Oils Packaging Line With Filling Capping Sealing Labeling Machines Auto1L-5L Plastic Jerry Tin Can Engine Oil Machine

Suitable for fill: Lubricant Oil / Car Oil / Motor Oil / coolant liquid / engine oil / Lubricanting Oil kinds Products
Filling Range:

50ml -1000ml
1L -5L
4L -20L
208L / 220L
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L ) contact us for more details

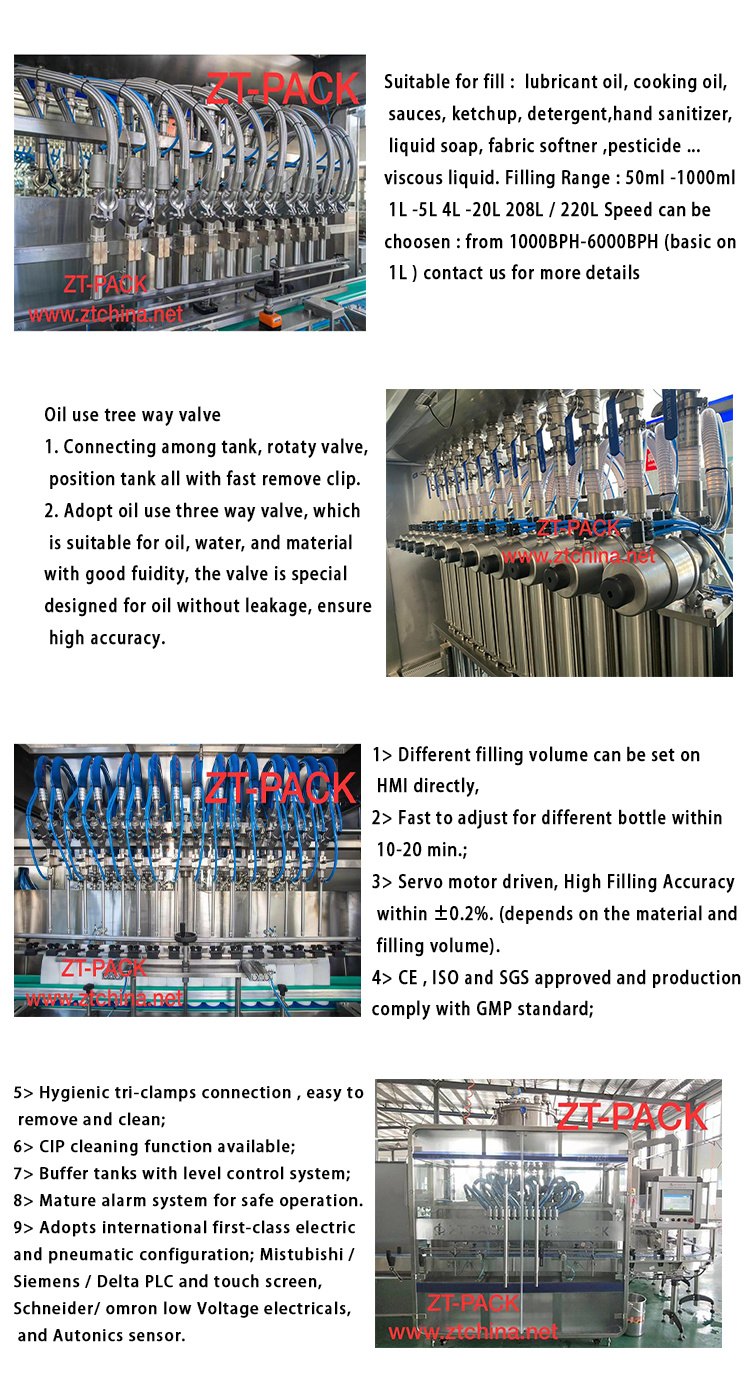

This series of filling machines use the flow meter / Piston / Net Weight types can be choosen according to different capacity speed required filling principle and a number of patent certifications, which are suitable for lube oil,engine oil, lubricant oil,motor oil, break oil, compressor oil, shock absorber oil, car oil filling.

The equipment adopts high-precision rotary encoder measurement to ensure the filling accuracy of 1 ‰.
While ensuring the filling accuracy, the filling speed is increased by 20% -35%.
The operation is simple, the maintenance is convenient, save labor cost, higher production efficiency.

The wide range of liquid packaging plant machinery
* Machinery for the most comprehensive scope of processes in connection with liquid packaging
* Worldwide presence
* 10+ years of global market experience
* Large number of customers worldwide
* The various range of possible end products


Parameters:

Model ZSP-6A ZSP-8A ZSP-10A ZSP-12A ZSP-16A
Dimension 2200×1100×2200mm (L×W×H) 2300×1100×2200mm (L×W×H) 2400×1100×2200mm (L×W×H)
Filling head 6 8 10 12 16
Capacity(1L) 1800B/H 2400 B/H 3000 B/H 3600 B/H 4800 B/H
Power 2.2KW 2.2 KW 2.2KW 3KW 3KW
Suitable bottle Diameter:Φ40mm——Φ100mm Height:80mm——280mm
Neck diameter Φ18mm
Filling range 50ml——1000ml /1L-5L (From ZT-PACK)
Air pressure 0.6Mpa-0.8Mpa
Power supply 380V ;50HZ / 60HZ

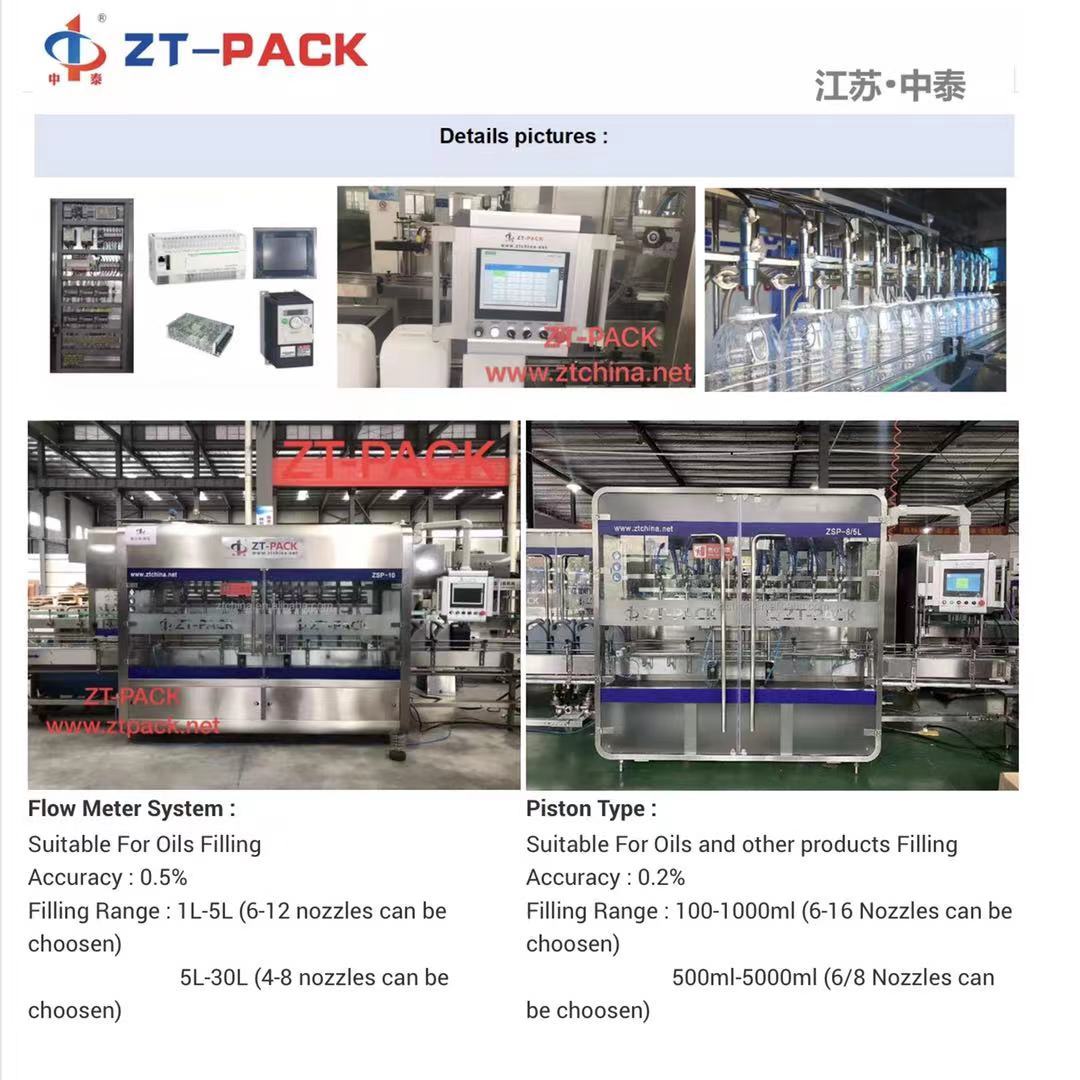

Details:
