Acid Drum Filler Automatic Plastic PVC Corrosive Liquids 5L 10L 20L Bleach HCL Filling Machine

+
  • 1(85).jpg
  • 2(22).jpg
  • 3(22).jpg
  • 4(5).jpg
  • 5(5).jpg

Suitable For Filling: Bleach / Clorox / Toilet Cleaner / Flash / Acid / Chlorine / Sulfuric acid / 84 Disinfectant...Etc kinds Products Filling Range : 5L-20L Capacity speed : 200-600BPH can be choosen Machine Material : Plastic Machine Description : This machine is used for the automatic low viscosity liquid filling in 5L -20L

Suitable For Filling: Bleach / Clorox / Toilet Cleaner / Flash / Acid / Chlorine / Sulfuric acid / 84 Disinfectant...Etc kinds Products Filling Range : 5L-20L Capacity speed : 200-600BPH can be choosen Machine Material : Plastic Machine Description : This machine is used for the automatic low viscosity liquid filling in 5L -20L

Product Description

Acid Drum Filler Automatic Plastic PVC Corrosive Liquids 5L 10L 20L Bleach HCL Filling Machine

Type:  ZGP-G

Suitable For Filling:


Bleach / Clorox / Toilet Cleaner / Flash / Acid / Chlorine / Sulfuric acid / 84 Disinfectant...Etc kinds Products

Filling Range : 5L-20L
Capacity speed : 200-600BPH can be choosen
Machine Material : Plastic

Machine Description :

This machine is used for the automatic low viscosity liquid filling in 5L -20L

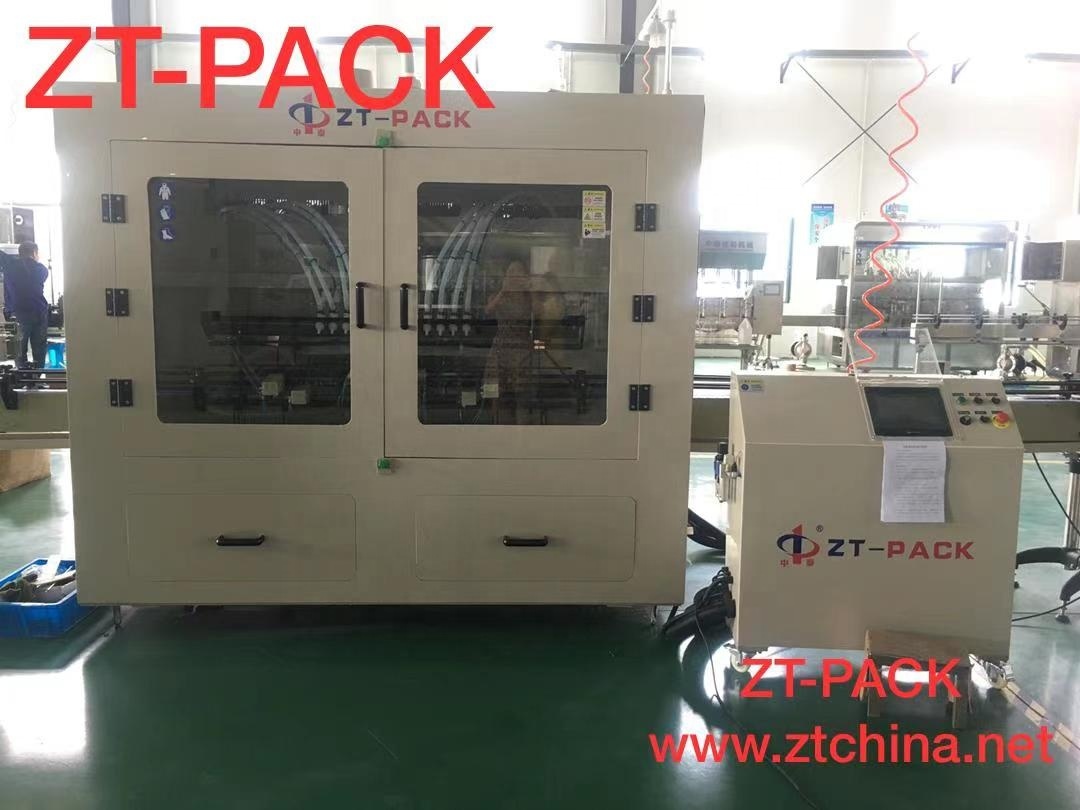

The machine is a full corrosion-protecting high-tech filler integrating in the PLC program control, photo electricity transuding and pneumatic. The machine is specially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch
the metal. The equipment’s all parts touching liquid are manufactured with the non-metallic corrosion protection material, and designed the descending filling function. Measurement accurate, there is not bubble and drool as filling.

FEATURES

· The weighing filling machine is made of PVC.
· The machine uses a PLC with touchscreen as its control system.electrical control panel 2-3 meters far away from filling machine in case any problem , will not damage for control parts
· The diving nozzle is designed to prevent bubble formation.
· The machine is easy to take apart and clean for routine maintenance.
· An alarm will sound in the event of machine failure.
· Flexible operation: suitable for filling bottles in a range of 5 to 20L in capacity.

Parameter

Model

ZGP-6G

ZGP-8G

ZGP-10G

ZGP-12G

ZGP-16G

Dimension

2000mm(L)x710mm(W)x2200mm(H)

2200mm(L)x710mm(W)x2200mm(H)

2300mm(L)x710mm(W)x2200mm(H)

Filling head

6

8

10

12

16

Capacity (500 mL)

1500B/H

2000B/H

2500B/H

3000B/H

4000B/H

Power

1KW

1KW

1KW

1.5KW

1.5KW

Suitable bottle

Diameter: Φ40mm - Φ100mm Height: 80mm-280mm

Filling accurate

≤100ml: + -1.5ml

100-500ml : + -2ml

500-1000ml: + -3ml

Neck diameter

≤Φ10mm (can be designed accordingly)

Filling range

100ml- 5000ml

Air pressure

0.6Mpa

Power supply

220V; 50HZ/

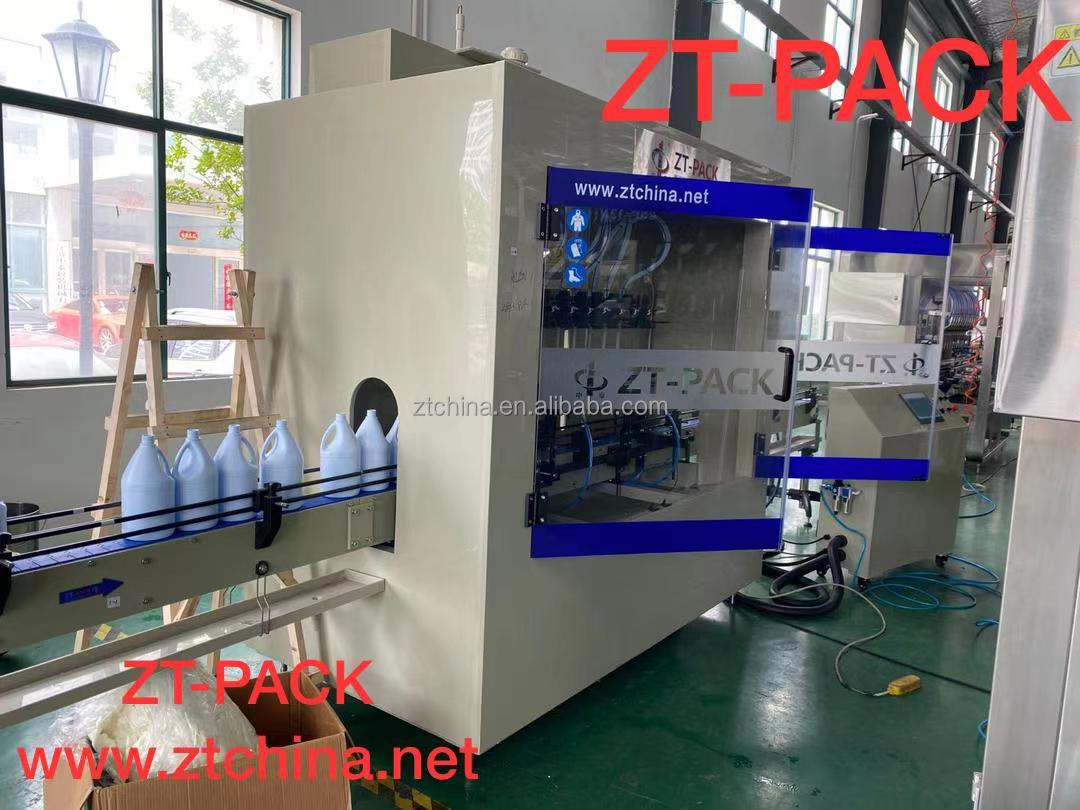

Details pictures :

Key Features :



 Heavy-duty stainless steel constructed

 Stainless steel Reservoir

 Automatic Bottling Index kit with bottle counter

 Pneumatic indexing gates (count in, count out)

 Automatic product level sensing float system

 Easily adjustable nozzle height settings accommodate vials to gallons

 User friendly PLC controls with touch screen HMI

 No bottle/No fill sensor

 Bottle backup sensor (downstream) delays operation until jam is cleared

 Able to output multiple doses per container for large containers

 Easy clean stainless steel quick connect fittings

 Drip Tray

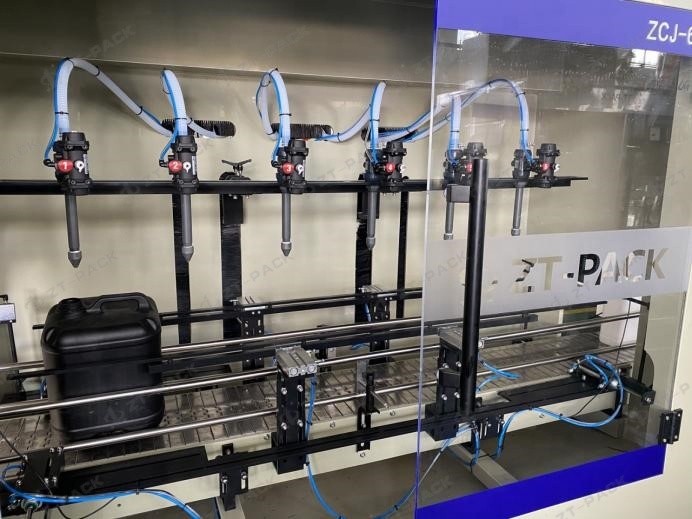

 Diving heads nozzles for bottom up filling to reduce foam

 Neck grabbers for containers with small opening

 Specifications are subject to change without notice, All rights are reserved.



How to choose automatic piston filling machine is big challenge for customers, If your are unsure how to choose a piston filling machine,Please let me know

 What product to fill

 What output capacity to achieve

 What material and shape of containers

 What size of containers to fill

Our professional team will help you to choose

So please contact us for specific advice on the best solution for you now.
