Induction Aluminium-foil Sealer

+
  • 主258.jpg

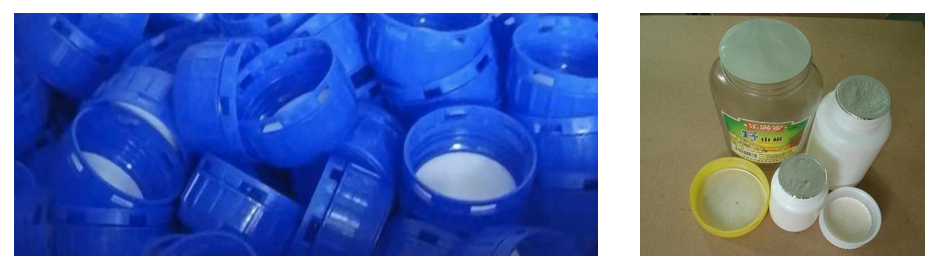

Electromagnetic induction aluminium-foil sealer for plastic cap inside with aluminium-foil, usually for lubricant oil, food oil area.

Electromagnetic induction aluminium-foil sealer for plastic cap inside with aluminium-foil, usually for lubricant oil, food oil area.

Product Description

Description:

The machine continuously seal mouth, water presser protection and dislocation alarming (restoration, restart to seal mouth), 5.5A, may seal 150-350 bottles per minute.with No cover, crooked cover, no aluminum foil detection and rejection device.

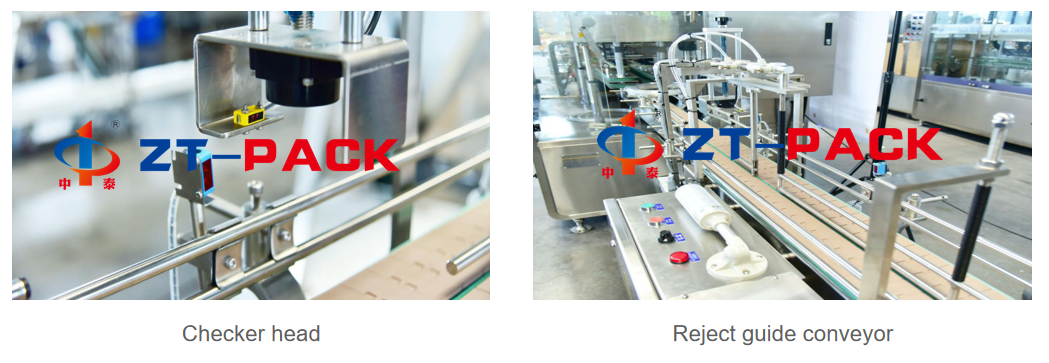

The device is applied to the automatic detection and elimination of the crooked cover without cover and without aluminum foil after the lid screw closure of the cover containing aluminum foil gasket. The flexible split treatment is adopted to automatically divert the unqualified products to another conveyor line. The equipment structure is simple and easy to adjust

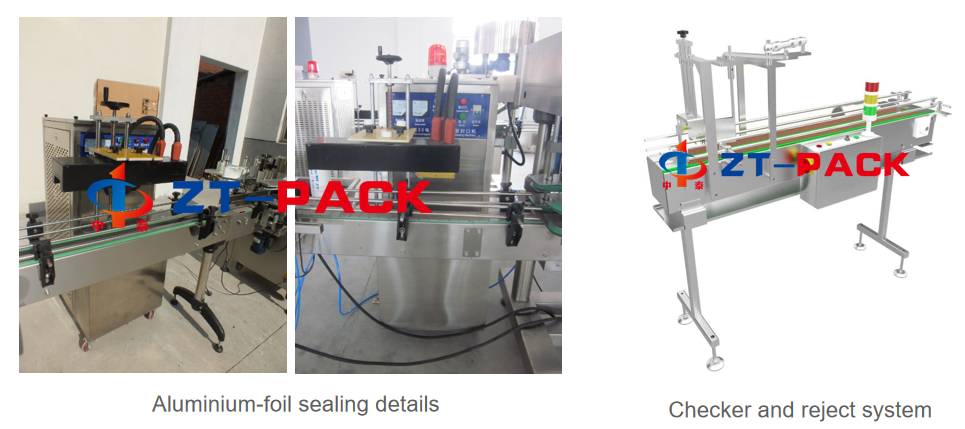

1.It can detect no cover, crooked cover and no aluminum foil at the same time. And it can automatically divert and reject unqualified products.

2.The unqualified products are automatically diverted to another conveying line by the dividing cylinder.

Technological parameters

Production speed

1000-6000bottles/hour

Running speed

0-20m/minute

Diameter of bottle mouth

φ10-φ50mm

Voltage

220V

Power

1.5kw



No cover, crooked cover, no aluminum foil detection and rejection device
