Intellectual Weighing Filling Machine

+
  • lubricant drum.jpg

Automatic weight filling machine for drum 5-30kg by weight system for chemical product and lubricant oil product.

Automatic weight filling machine for drum 5-30kg by weight system for chemical product and lubricant oil product.

Product Description

Major characteristics

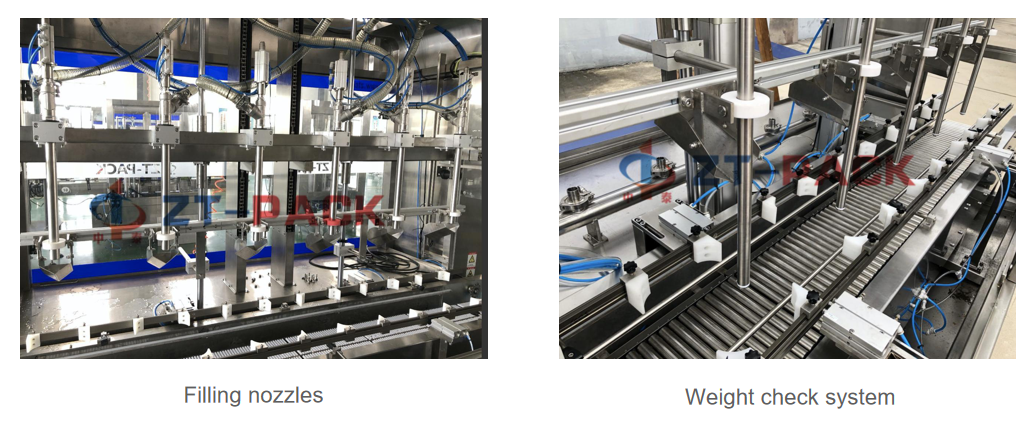

The machine has controlled by PLC, it can feed bottles, count bottles and peel weighting automatically. This product manufactured with a high degree of automation, every filling head has one high-precision weighing feedback system and it could set volume for each head or fine turning for single head to ensure same volume. Whole machine made of stainless steel, with diving filling(fast and slow) function, also could effectively reduce foam



Main performance parameter

Filling range

5-30kg

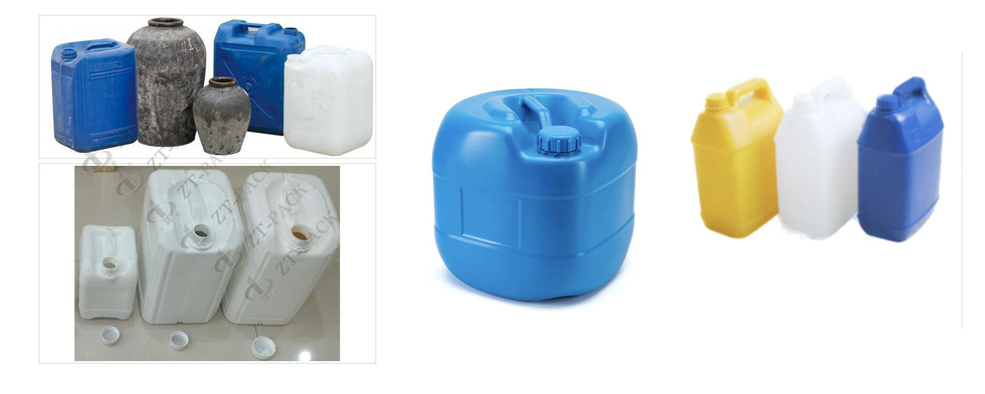

Bottle size range

L: 160mm~360mm
W: 140mm~260mm
H: 250mm~500mm

(Min: 140 × 200 × 320 mm , Max: 260 × 290 × 500 mm)

Diameter of bottle mouth

≥Φ40mm

Power Supply

~ 220 V, 50 Hz

The total power

3.5 kW

Air consumption

120L/Min

Measurement accuracy

± 0.5% (Note: Filling accuracy depends on the viscosity of the material as well as the continuity and stability of the material supply);

Production capacity

≤480bottles/hour

Bottle feed direction

From left to right
